Basic recognition methods of Huamei’s product:

1.Huamei brand rubber foam insulation with exclusive electronic supervision code for a piece of product is printed on the quality certifiate of the package. Users can free inquire for truthfulness by calling 95001111 (The area which does not open that number can call 010-95001111 ) / messaging 106695001111 or logging on Chinese product quality electronic supervision web www.95001111.com .

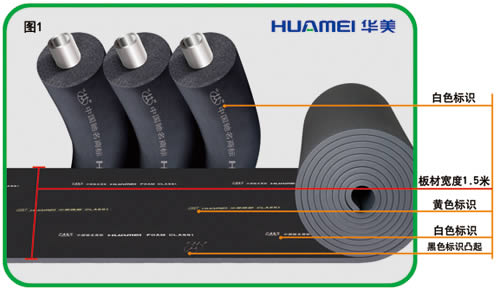

2.The company trade mark and name are printed on the face of the product outer package,and the identifiation, notes, product grade prove product quality (as shown in fiure 1 and 2).

3.Rubber foam insulation board one side has embossed picture and Huamei’s logo , the surface is printed automatically by the production line , equidistant company logo , product names and product grades . The board surface has three lines of identity all in white , Pipe surface identity is also in white . (as shown in 3 and 4)

4.Market Department of Huamei Group provides assistance with your identification.

Product Performance Advantages

Low conductivity factor

Conductivity factor is a very important index to measure the heat-insulation effect of the heat-preservation material .The lower the conductivity factor is, the better the heat-insulation performance will be. Conductivity factor of this material is 0.034w/m? k at average temperature 0 ℃ . As this product has high surface heat liberation rate, using the product with thinner thickness can get the same heatpreservation result as the traditional heat-preservation material at the same environmental conditions.

Good fire-blocking

According to fie-proof regulations of building design and fie-proof regulations of higher living building, the heat-preservation material used in piping and equipment should adopt the fie-blocking or non-combustion materials. This material contains a lot of fie-blocking and smoking-reducing raw materials. The smoking concentration generated from fire is very low. It shall not be melted when touched with fire and no any burning balls will be fallen down. The material has self-extinguishing characteristic. The specification of Huamei class 1 product is better than the national standard which used for burning products of construction filds. The burning performance of the product is not lower than C grade according to GB8624-2012 classifiation for burning behavior of building materials and products,ensuring safe and reliable

Vibration resistance

Huamei Brand Rubber Plastic Heat-Insulating & Heat-preservation Material has high elasticity, can reduce the vibration and resonate of the hot/cold water pipes in use in the largest degree.

Closed pore foaming , good damp-proof property

Huamei Rubber Foam Insulation owes perfect aperture-closing foam structure, all apertures are independent each other. The nonconnected air bubble forms the closed air layer that can enhance the heat-insulation performance efficiently, meanwhile the independent aperture-closing structure of can form much hindrance to moisture, even if the surface of the material was damaged, It also can prevent the water vapor into the inner material, so that maintaining the long-term steady of the heat-insulation effect at the same condition; the conductivity factor of water is 24 times higher than air' s, while the non-aperture-closing structure is in reverse.

Good pliability

Huamei Brand Rubber Foam insulation materials have good flexibility and tenacity which makes it easy to handle bent and irregular pipe in construction, saving both labor and material.

Beautiful appearance, easy to install

Because of the good softness, this product is easy to be installed.Tube Installing: The tubes can be installed after assembling or cut up them longitudinally and bind them with glue. With completed parts such as valve, three-way connection and elbow pipe, cut sheet material up and wrap those completed parts with the cut plate according to different shapes and then bind them together. That installing method guarantees the tightterial has smooth and straight surface as that of rubber and excellent performances, it is not needed to insert sealing layer or prevention layer, reducing the trouble in the construction and also guarantee that the installed appearance is beautiful and smooth. During the time of maintenance of equipment and pipe, the rest cut out from the material can be reused, which has the same performance.

Other advantages

Huamei Rubber Foam insulation Heat-Insulating & Heat-preservation Material can be used safely. Our products neither stimulate the skin nor harm health. The product can prevent mould from growing. They have excellent performance of acid-resisting and alkaliresisting. Because of those excellent performances, Huamei Rubber Foam insulation Heat-Insulating & Heat-preservation Material has become as an ideal heat-insulating material to protect pipe and tubes against environmental corrosion.

Pipe products

Sheet products

Rubber foam insulating tube for split type air conditioner

Class1 Technical Data

Basic recognition methods of product

 1. Huamei brand rubber plastic exclusive electronic supervision code for a piece of product is printed on the quality certificate with the package. Users can free inquire for truthfulness by calling/ messaging 95001111 or logging on electronic supervision web www.95001111查詢。

2. The corporation trade mark and name are printed on the face of the product outer package, the identification, notes and product grade for proving product quality.

3. On the surface of products, the company’s trade mark, product name and grade are printed in fixed interval automatically on the production line. There are three lines of identification on the surface of the plates with white; the identification on the surface of pipes comes in white.

 4. Market Department of Huamei Group provides assistance with your identification.tel：400-681-0999/5791888
